Borewell Waterfilled Submersible Pump - 7"
- Households and larger residential communities
- Large Building & Hotels
- Agriculture & gardening
- High-Rise Buildings
- Commercial Establishments
PRIMARY USAGE
POWER SOURCE
Description

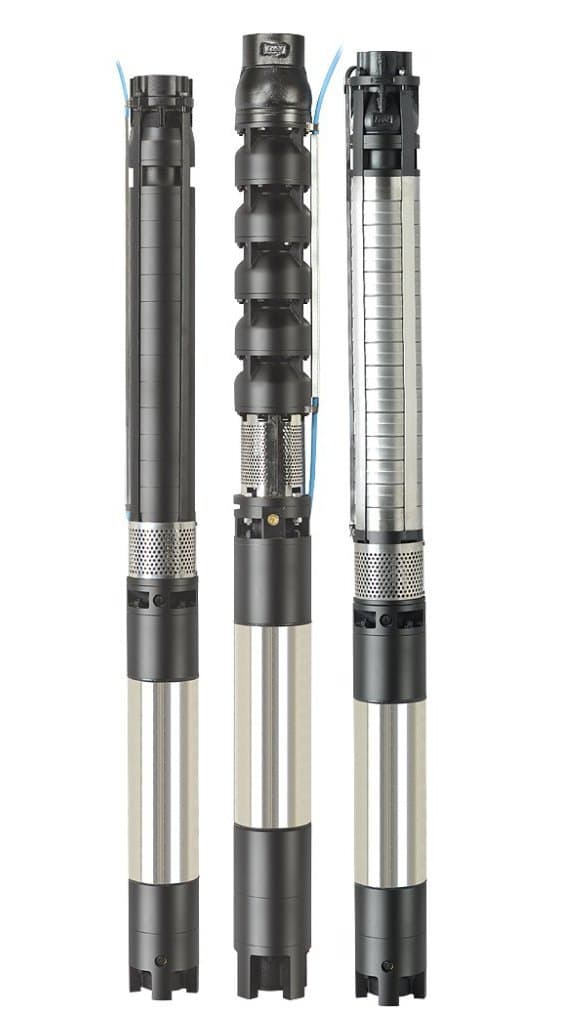

A 7" water-filled borewell submersible pump is a type of water pump designed to be fully submerged in a well (borewell) with a 7-inch diameter. It's used to draw water from deep underground sources for various applications like agriculture, domestic water supply, and industrial purposes. These pumps are known for their efficiency, reliability, and ability to operate under high pressure and in challenging conditions
APPLICATION
- Municipal supplies and larger residential communities
- Large Commercial
- High-Rise Buildings
- Industrial Water
- Large farms
- LargeFactories
SPECIFICATIONS
- Power Rating: 7.5 HP – 40 HP
- Voltage Range: 380 – 440V (3ph)
- Head Range: 80 – 400 m
- Discharge Range: From 200 – 1000 LPM
- Type of Cooling: Water-filled motor
MATERIAL OF CONSTRUCTION
- Motor Housing - Stainless Steel
- Motor Shaft - Stainless Steel
- Motor Bearing - Ball Bearing
- Finish Rotor - Copper
- Motor Base & Adaptor - Cast Iron
- Pump Shaft - Stainless Steel
- Pump Stage Casing - Cast Iron
FEATURES
- High discharge capacity
- Rugged for deep installation
- Withstands heavy usage
- Long life with minimal maintenance
