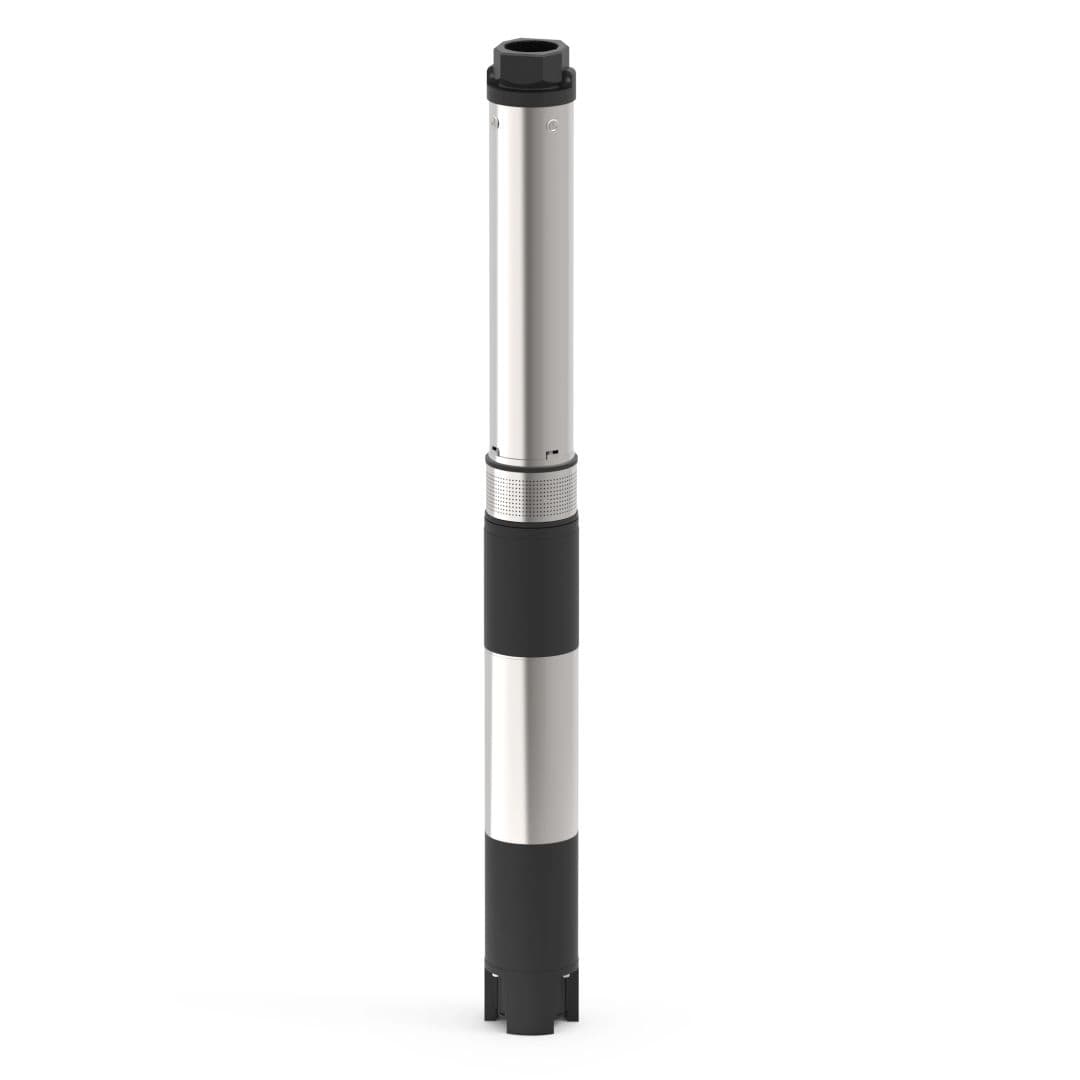

Borewell Waterfilled Submersible Pump - 4"

  • High rise building
  • Bungalows & Hotels
  • Agriculture & gardening
  • Domestic water supply

PRIMARY USAGE

POWER SOURCE

Description

A 4-inch water-filled submersible borewell pump is a type of pump designed for extracting water from borewells, typically used for residential, agricultural, and industrial applications. These pumps are characterized by their submersible design, where the entire pump unit is submerged in the water within the borewell. The "4-inch" designation refers to the pump's diameter, indicating its suitability for borewells with a corresponding diameter. The "water-filled" aspect means the pump's motor is cooled and lubricated by the surrounding water, offering an environmentally friendly alternative to oil-filled pumps.

APPLICATION

  • High rise building
  • Bungalows & Hotels
  • Agriculture & gardening
  • Domestic water supply

SPECIFICATIONS

  • Power Rating: 0.5 HP – 5 HP
  • Voltage Range: 180V – 240V (1ph) / 380–440V (3ph)
  • Head Range: 20 – 250 m
  • Discharge Range: From 10 – 250 LPM
  • Type of Cooling: Water-filled motor

MATERIAL OF CONSTRUCTION

  • Motor Housing - Stainless Steel
  • Motor Shaft - Stainless Steel
  • Motor Bearing - Ball Bearing
  • Finish Rotor - Copper
  • Motor Base & Adaptor - Cast Iron
  • Pump Shaft - Stainless Steel
  • Pump Stage Casing - Cast Iron
  • Impeller - Stainless Steel
  • Outlet (NRV) - Cast Iron
  • Suction Housing - Cast Iron

FEATURES

  • Innovative enhancements in efficiency and lower power usage
  • Ideal and appropriate for horizontal performance
  • Impressive and well-suited for low voltage operations
  • Incredible design for persistent operation
  • Indigenous crafting to minimize motor burnout risks
  • Inexpensive with prolonged durability
