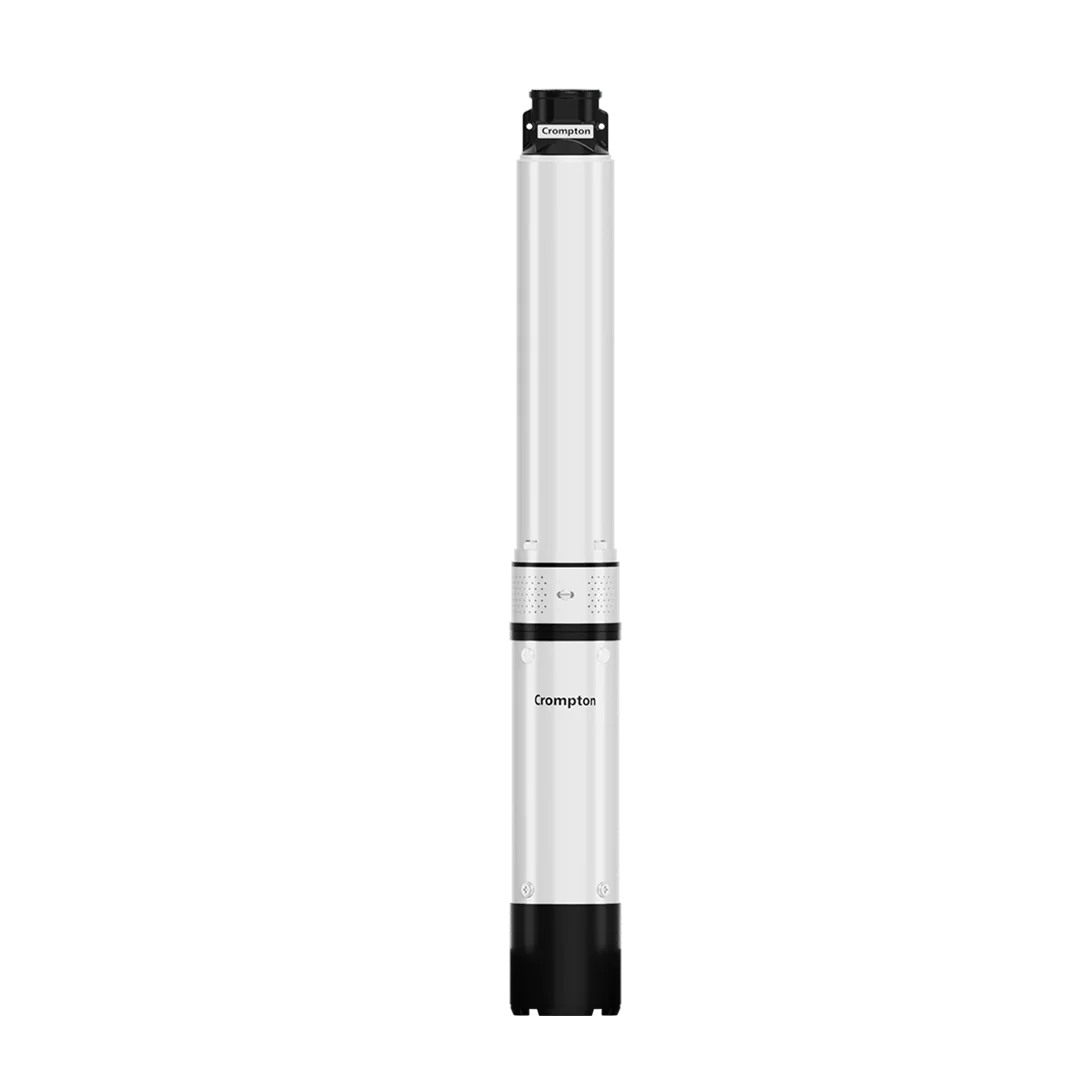

Main image for Borewell Oilfilled Submersible Pump - 4"

Borewell Oilfilled Submersible Pump - 4"

  • Households and residential
  • Semi Commercial
  • Agriculture & gardening
  • Domestic water supply

PRIMARY USAGE

POWER SOURCE

Description

A 4-inch oil-filled submersible borewell pump is a type of pump designed for extracting water from borewells, typically used for residential, agricultural, and industrial applications. These pumps are characterized by their submersible design, where the entire pump unit is submerged in the water within the borewell. The "4-inch" designation refers to the pump's diameter, indicating its suitability for borewells with a corresponding diameter. The "oil-filled" aspect means the pump's motor is cooled and lubricated by the surrounding oil, offering an environmentally friendly alternative to water-filled pumps.

APPLICATION

  • Households and residential
  • Semi Commercial
  • Agriculture & gardening
  • Domestic water supply

SPECIFICATIONS

  • Power Rating: 0.5 HP – 5 HP
  • Voltage Range: 180V – 240V (1ph) / 380–440V (3ph)
  • Head Range: 20 – 200 m
  • Discharge Range: 10 – 250 LPM
  • Type of Cooling: Oil-filled motor

MATERIAL OF CONSTRUCTION

  • Motor Housing - Stainless Steel
  • Motor Shaft - Stainless Steel
  • Motor Bearing - Ball Bearing
  • Finish Rotor - Copper
  • Motor Base & Adaptor - Cast Iron
  • Pump Shaft - Stainless Steel
  • Pump Stage Casing - Cast Iron
  • Impeller - Stainless Steel
  • Outlet (NRV) - Cast Iron
  • Suction Housing - Cast Iron

FEATURES

  • Innovative enhancements in efficiency and lower power usage
  • Better thermal protection
  • Operates under voltage fluctuation
  • Longer motor life in rural areas
